ENGINE发动机 |
|
|
Emission Standard排放标准 |
Euro V /EPA |
|
Make制造商 /Model 型号 |
KUBOTA久保田 /D1703 |
|
Power功率 /Rotation speed转速 |
18.5kw(25HP)@2200rpm |
|
Number of cylinder气缸数 |
3 |
|
Type 型式 |
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated 直列，水冷，4冲程，机械泵，自然吸气 |
|
Max.torque扭矩 |
97.4N.m/1500rpm |
|
Displacement 排量 |
1.642L |
|
TRACK DRIVING SYSTEM行走系统 |
|
|
Maximum Travel speed(High/low) 最大行走速度（高/低） |
4.4/2.4km/h |
|
Width of steel track shoe履带板宽 |
300mm |
|
Carrier roller(Each side)托链轮（每侧） |
1 |
|
Supporting roller(Each side)支重轮（每侧） |
4 |
|
PERFORMANCE PARAMETER性能参数 |
|
|
Standard Bucket capacity挖斗容积 |
0.12m³ |
|
Swing speed回转速度 |
12rpm |
|
Maximum Grade ability最大爬坡度 |
58%(30°) |
|
Ground pressure 接地比压 |
32Kpa |
|
Maximum Bucket digging force 挖斗最大挖掘力 |
30.4KN |
|
Maximum Arm digging force 斗杆最大挖掘力 |
18.2KN |
|
Hydraulic system pressure液压系统压力 |
22.5Mpa |
|
Machine weight整机重量 |
3810kg |
|
Boom length大臂长度 |
2535mm |
|
Arm length斗杆长度 |
1400mm |
|
Fuel tank capacity 燃油箱容积 |
40L |
|
Hydraulic oil tank capacity液压油箱容积 |
44L |
|
Engine oil capacity 机油容积 |
7L |
|
Radiator capacity散热器容积 |
3.8L |
|
Final drive终传动容积 |
2*0.7L |
|
MACHINE SIZE尺寸 |
|
|
Overall dimension (L*W*H) 外形尺寸（长宽高）） |
4915mm*1720mm*2525mm |
|
Axle base(Track length on ground)轴距 |
1670mm |
|
Length of rubber track履带长度 |
2154mm |
|
Track gauge轨距 |
1420mm |
|
Minimum Ground clearance 最小离地间隙 |
295mm |
|
Swing radius at tail尾部回转半径 |
860mm |
|
Swing radius at front前部回转半径 |
2538mm |
|
Height of blade推土铲高度 |
350mm |
|
WORKING RANGE工作范围 |
|
|
Maximum Digging height最大挖掘高度 |
4800mm |
|
Maximum Dumping height最大卸载高度 |
3406mm |
|
Maximum Digging depth最大挖掘深度 |
3208mm |
|
Maximum Vertical digging depth 最大垂直挖掘深度 |
2957mm |
|
Maximum Digging distance(working radius) 最大挖掘距离（工作半径） |
5480mm |
|
Maximum digging distance (on ground) 最大挖掘距离（在地面上） |
5359mm |
|
Minimum swing radius最小回转半径 |
2530mm |
|
Max.height when min.swing radius 最小回转半径时的最大高度 |
3655mm |
|
Maximum Lifting height of blade 推土铲的最大起升高度 |
365mm |
|
Maximum Cutting depth of blade 推土铲最大切削深度 |
385mm |
|
Boom swing angle(Left/Right) 动臂偏摆角度（左55°/右65°） |
55°/65° |

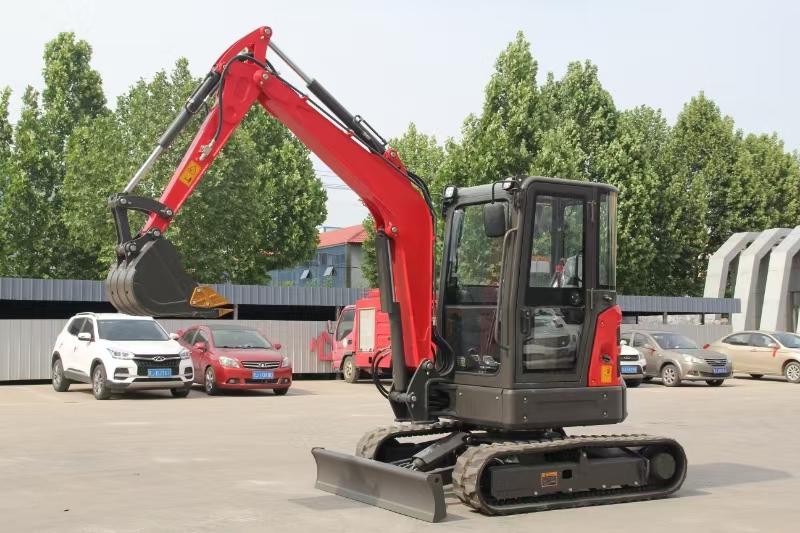

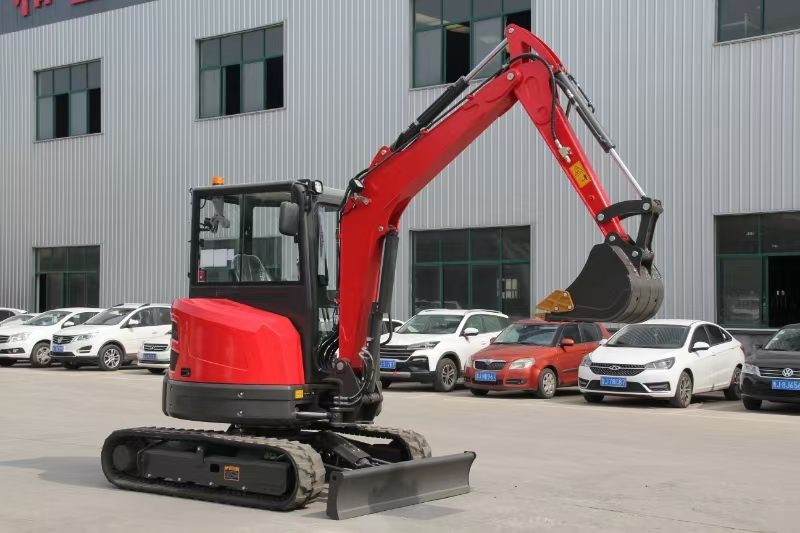

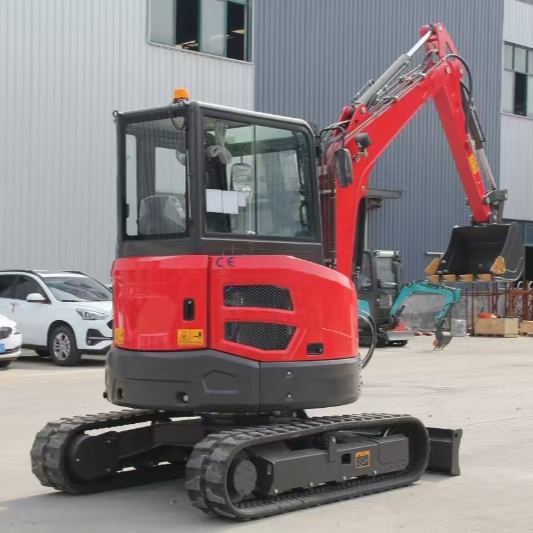

JH35 CRAWLER EXCAVATOR
1-Japan Kubota D1703 engine , 18.2kw/2200rpm, Euro 5,EPA4
日本久保田D1703发动机,18.2KW/2200rpm,欧五排放
2-China HENGLI brand pump国产恒立柱塞泵
或者龙工随机
3-China HENGLI brand load sensing valves国产恒立主阀
或者龙工随机
4-China AIDI brand slewing motor国产艾迪回转马达
5-China AIDI brand driving motor国产艾迪行走马达
或者力克川随机
6-Closed cabin and A/C带驾驶室+空调
7-Hydraulic pilot servo operation system先导伺服操纵系统
8-Steel track track钢履带 :300mm
9-With hydrau
$19,999.00 USD
