The key parameters of the SHANONG SEM660D loader include: rated load capacity of 6000kg, bucket capacity of 3.3 - 5.5m³, engine rated power of 178kW, and maximum dumping height of 3740mm. Here are the detailed parameter information:
Basic performance parameters
Rated load capacity: 6000kg (5-6 tons)
Overall operating weight: 20000kg
Bucket capacity: 3.3 - 5.5m³ (standard configuration is 3.5m³)
Excavation force (lifting force): 204kN
Maximum traction force: 188kN
Engine parameters
Engine model: WP10G240E343
Rated power: 178kW/2000rpm
Displacement: 9.7L
Transmission and driving parameters
Transmission type: Fixed-axis power shift, F4/R4
Torque converter type: Single-stage three-element radial type, model TR200
Driving speed:
1st gear: 7.4km/h
2nd gear: 14km/h
3rd gear: 22km/h
4th gear: 38km/h
Overall machine size parameters
Overall length: 8541mm
Overall width: 3092mm
Overall height: 3458mm
Axle distance: 3350mm
Turning radius (outside of bucket): 7075mm
Other parameters
Maximum dumping height: 3740mm (light material bucket)
Dumping distance: 1710mm (light material bucket)
Bucket slewing pin: 5173mm (light material bucket)
Dumping angle: 40° (light material bucket)
Bucket width: 3520mm (light material bucket)
Bucket length: 1820mm (light material bucket)
Bucket height: 1830mm (light material bucket)
Bucket weight: 2600kg (light material bucket)
The SHANONG SEM660D loader, with its powerful performance and flexible configuration, can meet the needs of various operation scenarios.

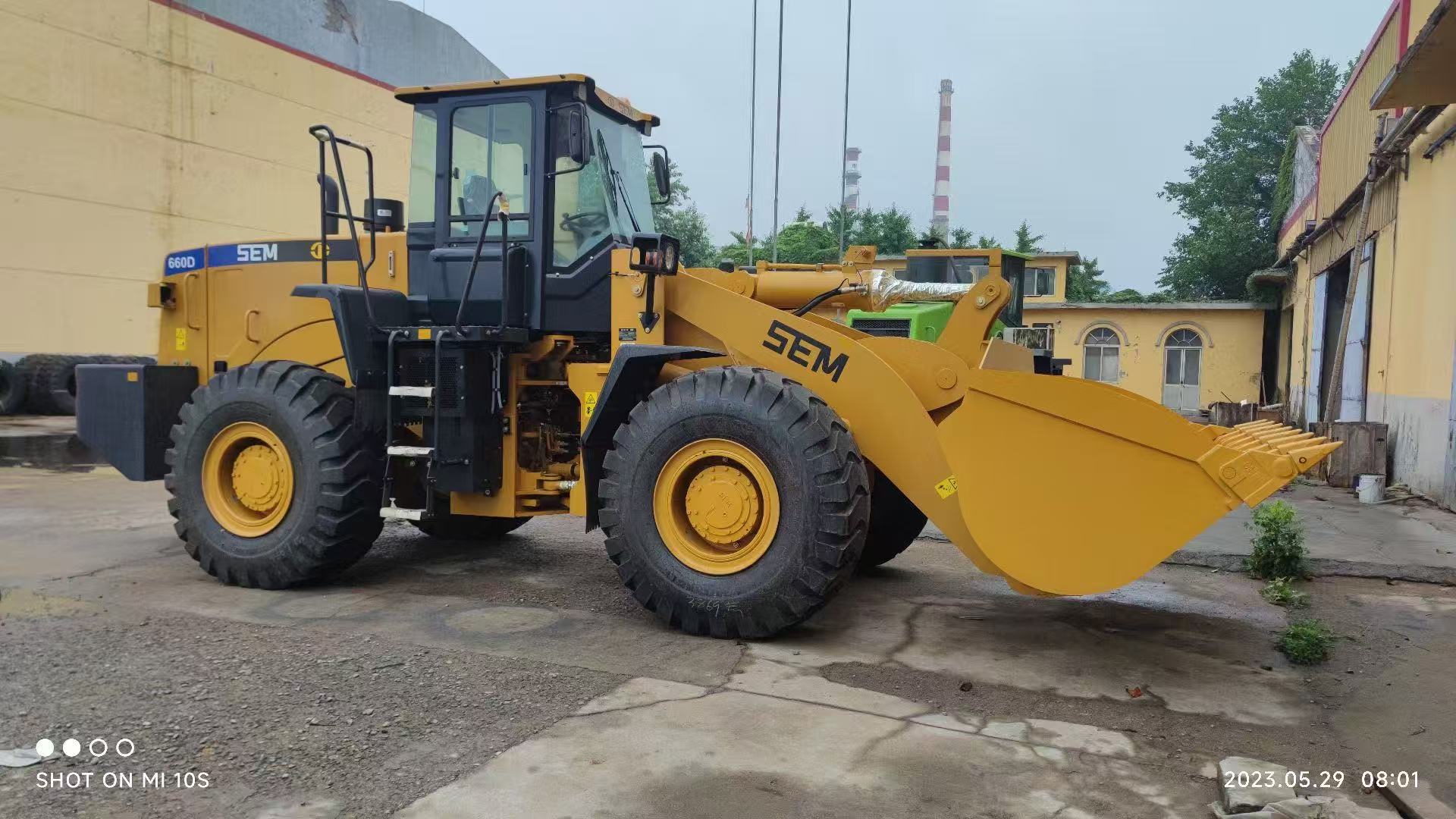

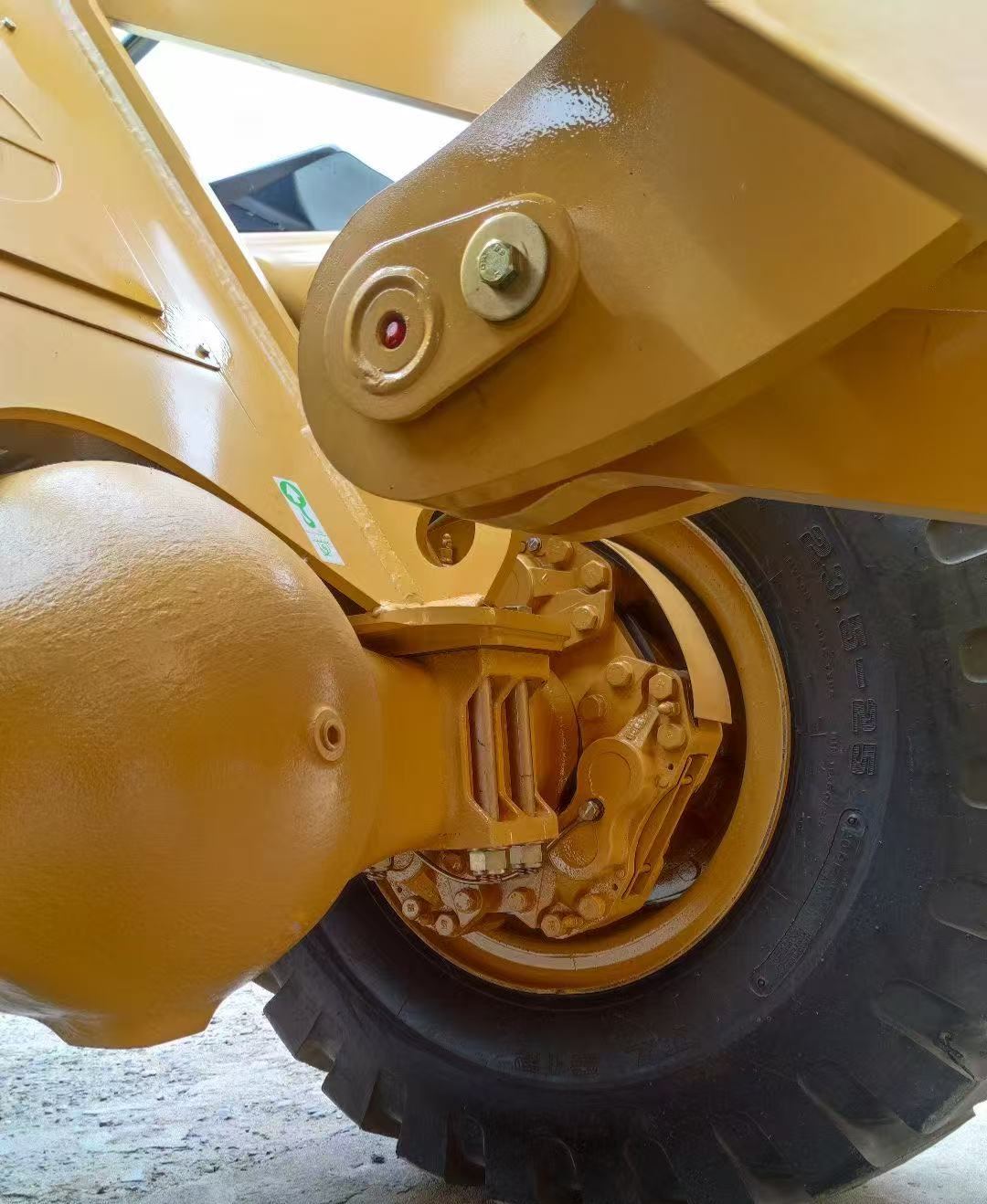

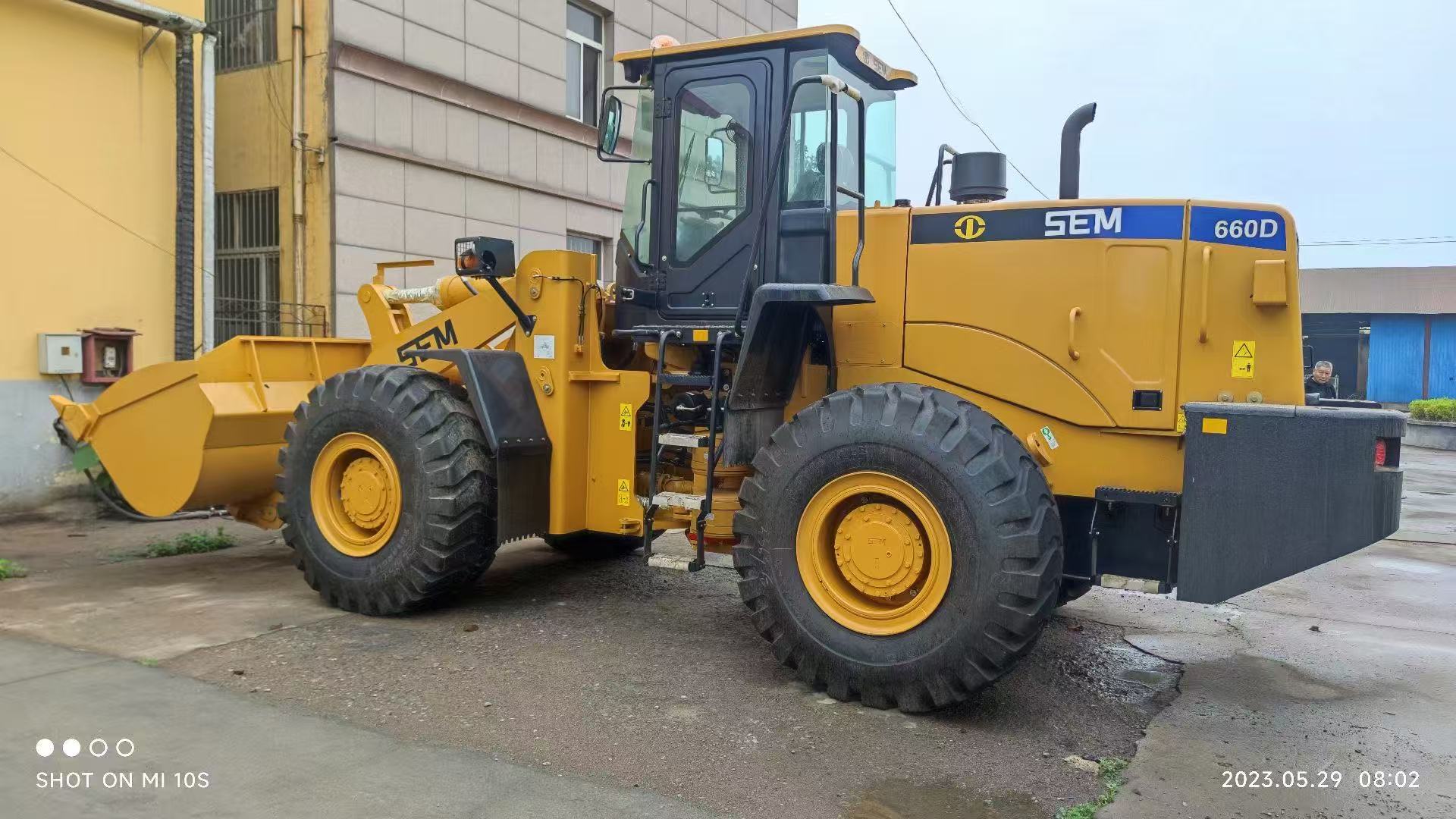

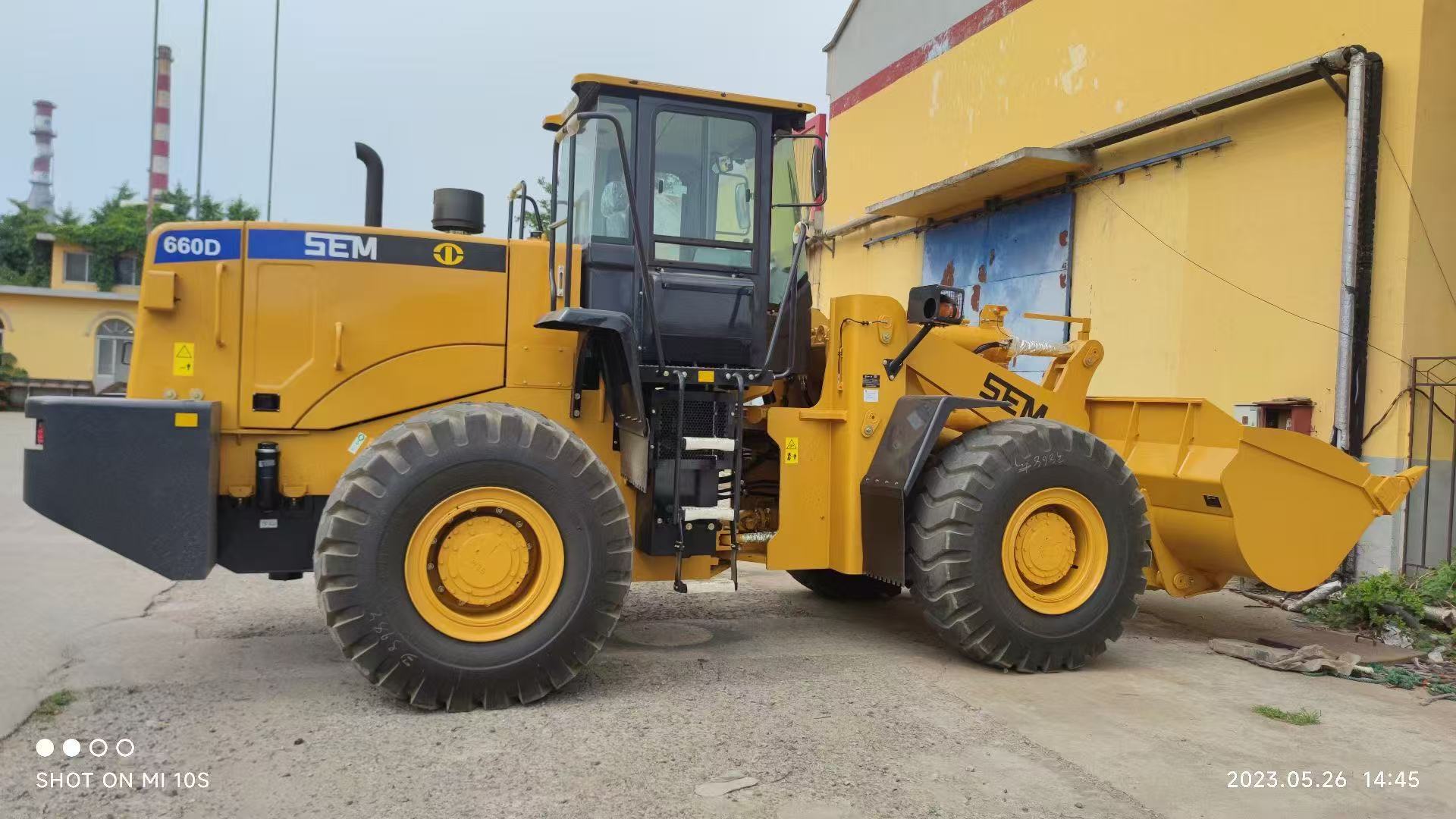

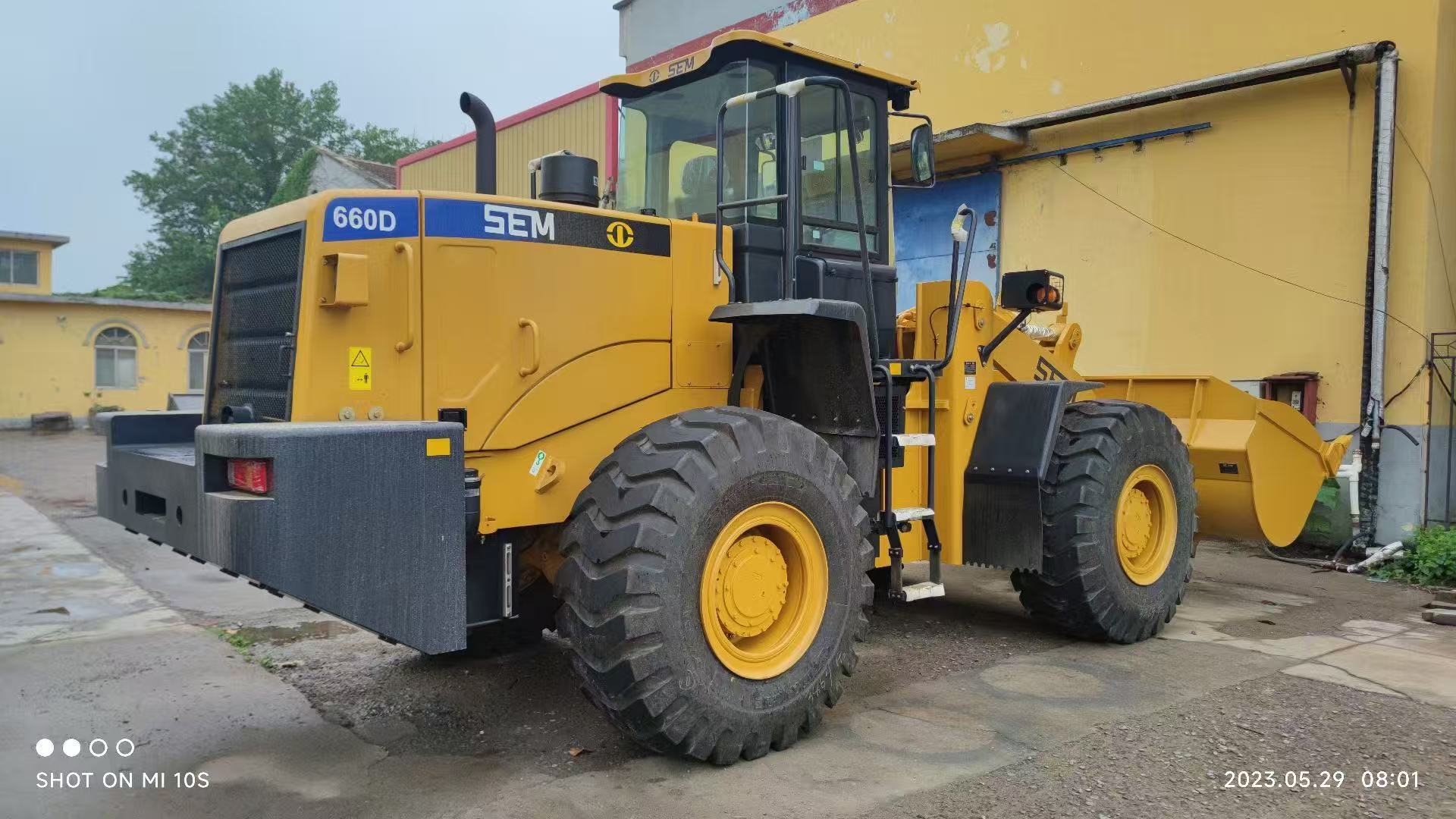

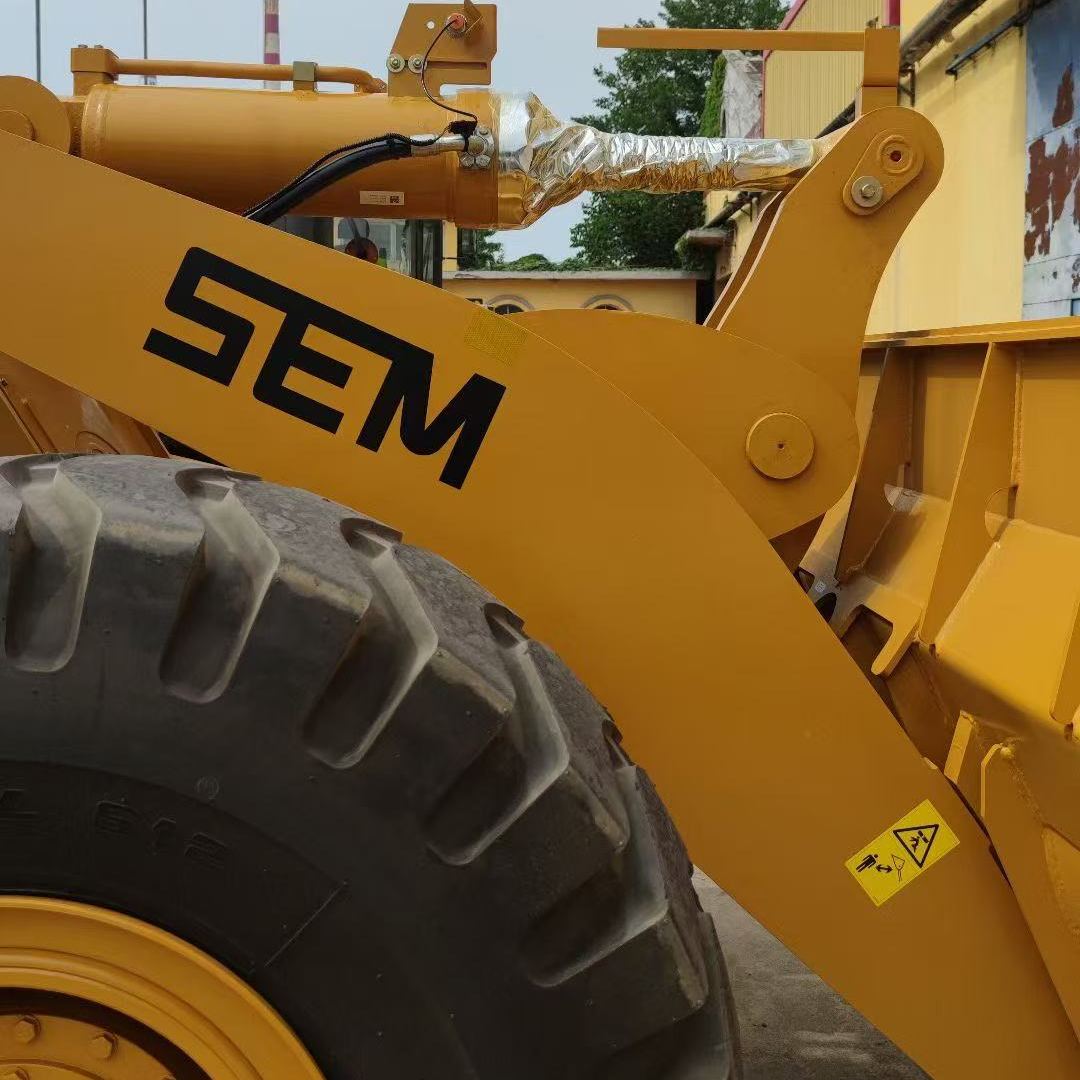

ESM660DLarge Loader
Can carry 6 tons. Weichai engines / Cummins engines. High performance, can be produced according to customer requirementsThe key parameters of the SHANONG SEM660D loader include: rated load capacity of 6000kg, bucket capacity of 3.3 - 5.5m³, engine rated power of 178kW, and maximum dumping height of 3740mm. Here are the detailed parameter information:
Basic performance parameters
Rated load capaci
$84,500.00 USD
